Name: Proel DIRECT100A Active Direct Injection Box
SKU: DIRECT100A
Price: 120000.00 NGN
Availability: InStock

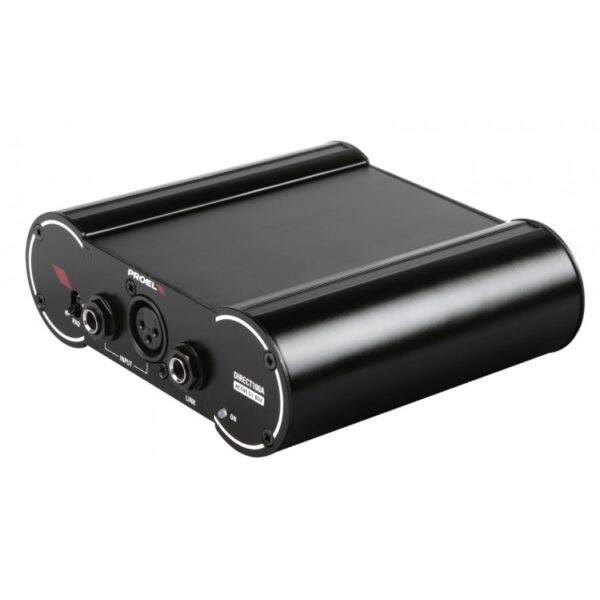

Proel DIRECT100A Active Direct Injection Box

₦120,000.00

Availability: In Stock

SKU: DIRECT100A

The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations.
Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.

• Active Direct Injection Box
• High quality isolation transformer for ultra-flat frequency response
• Low-noise OP amps with high-quality sound performance

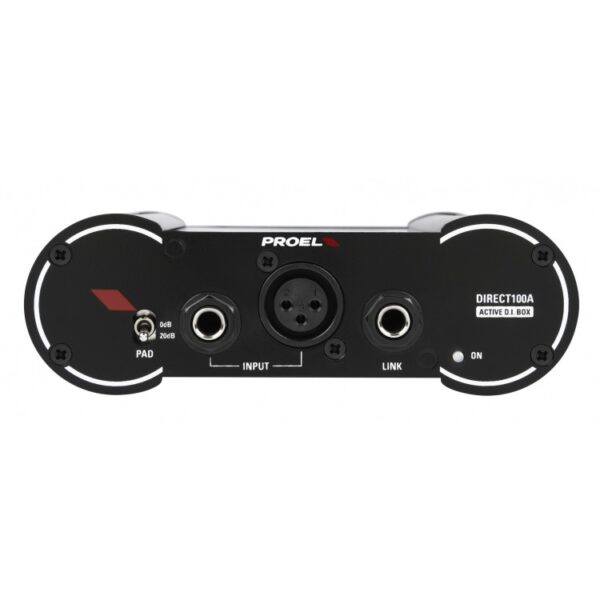

• XLR-F and 1” JACK input connectors + 1” JACK link – XLR-M balanced output
• 20dB PAD and GND lift switch
• Stackable aluminum shell

Compare

Description

Model: DIRECT100A
• Input Impedance: >250 Kohm
• Max Input Level: +6 (PAD at 0) / +26 (PAD at 20) dBu
• Connectors: 1 x XLR-F + 1 x 1/4″ jack unbalanced
• Link: 1 x 1/4″ jack unbalanced

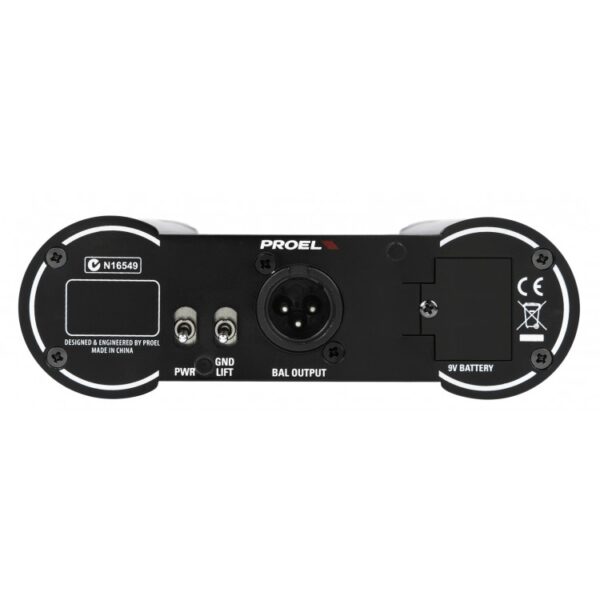

• Output: Transformer Balanced (fully isolated)
• Insertion Loss: 0 dB
• Load Impedance: 600 Ohms or greater
• Connector: XLR male
• Distortion THD 50÷20k Hz 0dBu: < 0.005 %
• Noise: < -105 dBu unweighted
• Frequency Response: 10 Hz to 40 kHz (-3 dB)
• Controls: ON/OFF, PAD -20, GND LIFT
• Indicators: Power ON
• Phantom Power: +18 volts DC to +48 volts DC
• Battery: 9 volt PP3 type alkaline
• Dimensions (W x H x D): 152 x 50 x 134 mm
• Weight (excluding batteries): 0,70 Kg
