Description
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation

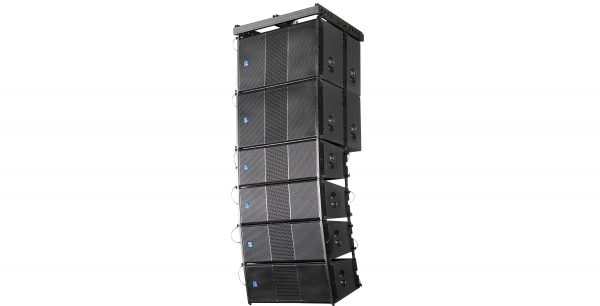

●Convenient for hanging and stacking
●Good used for stadiums,big scale performance,conference centers and odeums.
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging and stacking
●Good used for stadiums,big scale performance,conference centers and odeums.
SPECIFICATIONS
| MODEL | MLA210 | MLA210DA |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz | 55Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20KHz | 50Hz-20KHz |
| DRIVERS | 2×10″(250mm)/3″voice coil LF | 2×10″(250mm)/3″voice coil LF |
| 1×1.4″(36mm)/3″voice coil HF | 1×1.4″(36mm)/3″voice coil HF | |
| RATED POWER | 500W(RMS),2000W peak | 300W/8Ω+800W/8Ω |
| SENSITIVITY | 101dB 1watt/1meter | — |
| MAXIMUM SPL | 128dB continuous,134dB peak | 128dB continuous,134dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | Horizontal coverage:100°, | Horizontal coverage:100°, |
| Vertical coverage:varies,depending on | Vertical coverage:varies,depending on | |
| arry length and configuration | arry length and configuration | |
| CROSSOVER FREQUENCIES | 700Hz,1.5kHz passive | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 525mmx410mmx865mm | 525mmx410mmx865mm |
| NET WEIGHT | 26 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 31 kg/pc | 33 kg/pc |
CONFIGURATION
