Description
EATURES
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency’s sensitivity can be adjusted
●Rotatable 90°×40°horn
●Flexible mounting options
●Top hat fitting for tripod
SPECIFICATIONS
MODEL | U112V | U112VA |
FREQUENCY RESPONSE(-3dB) | 50Hz-18KHz | 50Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 45Hz-20KHz | 45Hz-20KHz |
DRIVERS | 1×12″(300mm)/3″voice coil LF | 1×12″(300mm)/3″voice coil LF |
1×1″(25mm)/1.7″voice coil HF | 1×1.4″(36mm)/3″voice coil HF | |
RATED POWER | 300W RMS,1200W peak | 600W/8Ω |
SENSITIVITY | 97dB 1watt/1meter | — |
MAXIMUM SPL | 122dB continuous,128dB peak | 122dB continuous,128dB peak |
IMPEDANCE | 8 ohms nominal | — |
DISPERSION(-6dB) | 90°x40° | 90°x40° |
CROSSOVER FREQUENCIES | 2kHz passive | — |
INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
PACKAGE SIZE | 490mmx470mmx730mm | 490mmx470mmx730mm |
NET WEIGHT | 21 kg/pc | 23 kg/pc |
GROSS WEIGHT | 25 kg/pc | 27 kg/pc |

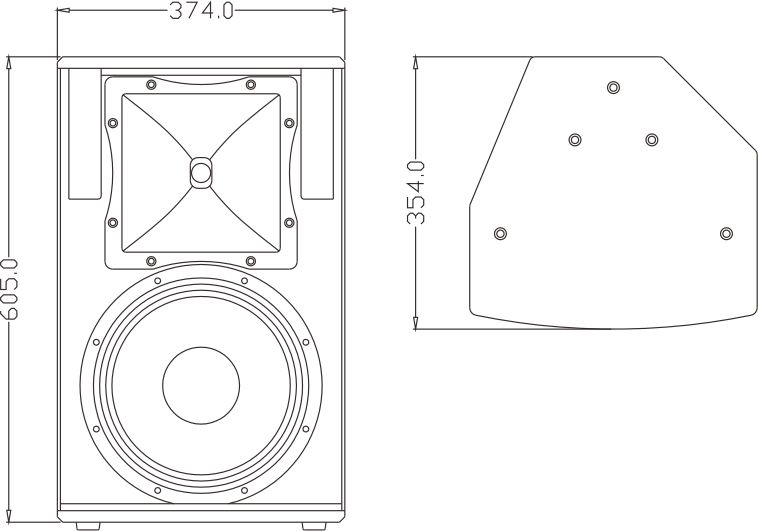

CONFIGURATION
