Description
- Compact and low-profile for minimal obstruction of audience sight-lines.
- 90°x 50° nominal coverage.
- Bi-amplified or full-range passive operation.
- Dual-angle pole socket for applications requiring tripod mounting.
- Optional yoke available for trussmounted or suspended applications.
- Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
- 3 in (diaphragm) neodymium magnet compression driver.
Technical Manual

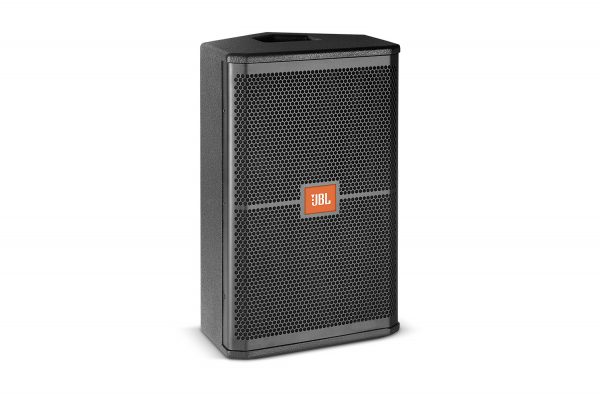

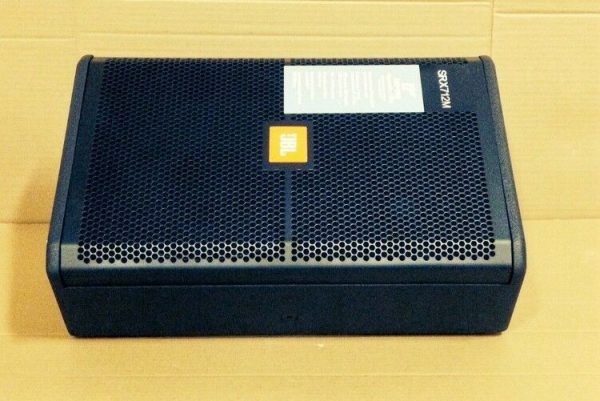

JBL SRX712M
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 Ohms
• Power Capacity: Continuous / Program / Peak:
Passive: 800W / 1600W / 3200W
Bi-amp LF: 800W / 1600W / 3200W
Bi-amp HF: 75W / 150W / 300W
• Frequency Range: 70 Hz – 20 kHz (–10 dB)
• Maximum SPL: 131 dB SPL peak (1 Watt @ 1 Meter)
• System Sensitivity: Passive Mode 96 dB SPL (1 Watt@ 1 Meter)
• Crossover Freq.: 1.2 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not For Sale)
• Grille: 352248-001
• Low Frequency
Transducer: 2262H, 305 mm (12 in) Differential Drive Woofer
• DC Resistance: 5.1 ohms ± 10%
• High Frequency 2431H, 75 mm (3 in) voice coil, neodymium
Transducer: compression driver
• DC Resistance: 4 ohms ± 10%
• Crossover Network: 364971-001
JBL SRX712M
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 Ohms
• Power Capacity: Continuous / Program / Peak:
Passive: 800W / 1600W / 3200W
Bi-amp LF: 800W / 1600W / 3200W
Bi-amp HF: 75W / 150W / 300W
• Frequency Range: 70 Hz – 20 kHz (–10 dB)
• Maximum SPL: 131 dB SPL peak (1 Watt @ 1 Meter)
• System Sensitivity: Passive Mode 96 dB SPL (1 Watt@ 1 Meter)
• Crossover Freq.: 1.2 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not For Sale)
• Grille: 352248-001
• Low Frequency
Transducer: 2262H, 305 mm (12 in) Differential Drive Woofer
• DC Resistance: 5.1 ohms ± 10%
• High Frequency 2431H, 75 mm (3 in) voice coil, neodymium
Transducer: compression driver
• DC Resistance: 4 ohms ± 10%
• Crossover Network: 364971-001
