American DJ Mega 64 Profile Plus Overview

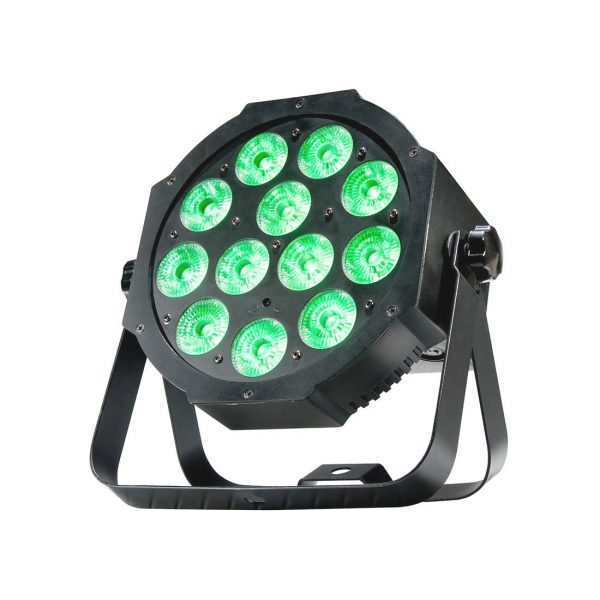

The American DJ Mega 64 Profile Plus Lighting Fixture is a compact, low-profile wash fixture designed for uplighting, stage lighting, and wall washing. The Mega 64 Profile Plus is powered by twelve 4W quad (RGB+UV 4-in-1) LEDs. This PAR is designed so it can sit directly on the ground or inside a truss without the hanging bracket. This unit offers smooth RGB+UV color mixing with no shadows. It has a 25° beam angle and 5 DMX channel modes for a variety of programming options.

  • Ultrabright flat Par 64 with 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
  • Smooth RGB color mixing (fast or slow color change operation) with no RGB+UV shadows

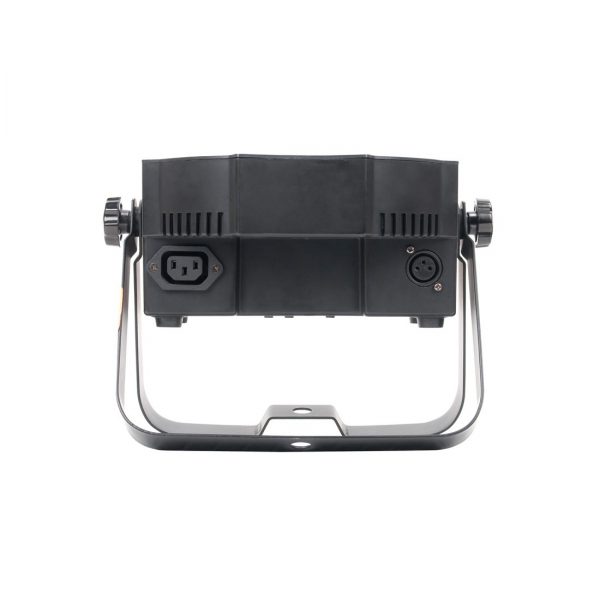

  • Power and DMX ins/outs are designed to sit sideways, so the unit can be set flat on the ground

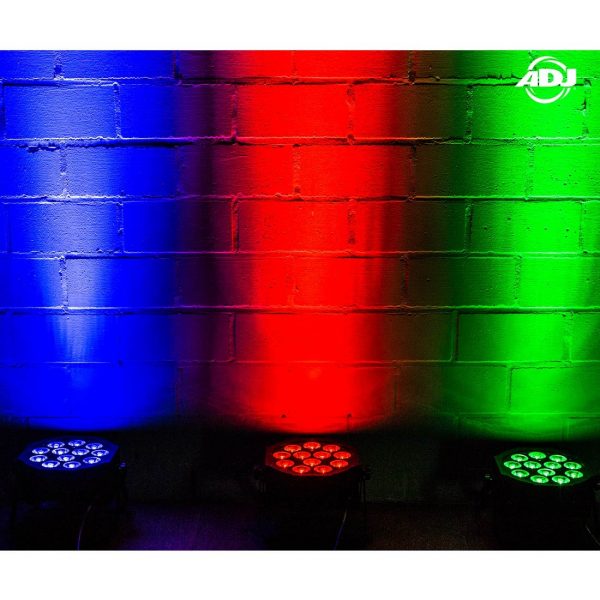

  • Great as an architectural wall wash or for performance stages vs. traditional stage lighting, which can emit a lot of heat onto performers
  • 5 DMX Channel Modes: 4/5/6/9/10 Channels
  • 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode (16 Color Change Programs, 16 Color Fade Programs, and Color Change, and  Fade Combinations), Static Color Mode and DMX Controlled
  • Standalone or Master/Slave Configuration
  • Beam Angle: 25 degrees
  • 4-Button DMX LED Display
  • 64 built-in Color Macros
  • Flicker free
  • Refresh Rate: 504 Hz
  • DMX-512 protocol
  • LED Pulse and strobe effect
  • Linkable via 3-pin XLR cable
  • Wired Digital Communication Network
  • Electronic Dimming: 0-100%
  • Includes scissor yoke to hang on truss, mount on a wall, or set on the ground
  • Long Life LEDs (50,000 hours)
  • Power Draw: 54W Max
  • IEC AC input and output on rear to daisy-chain power (up to 12 Mega 64 Profile Plus fixtures)
