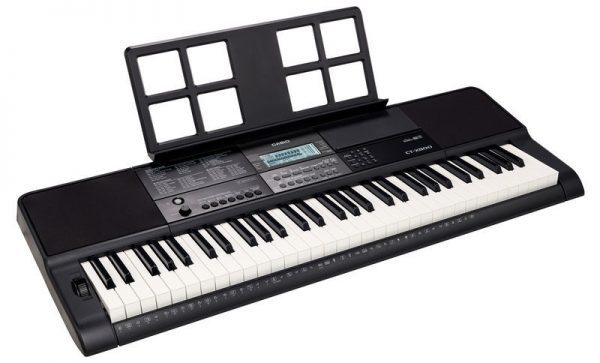

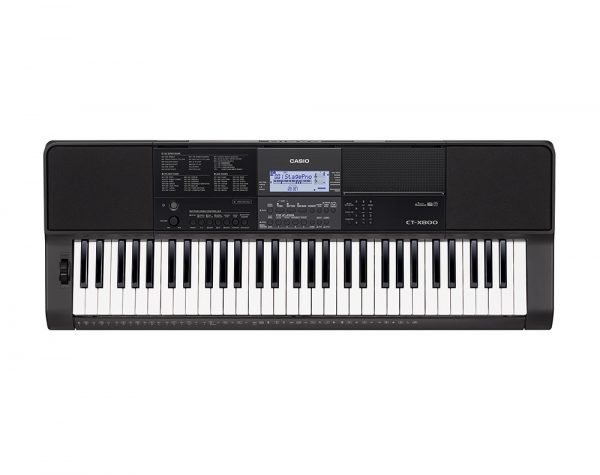

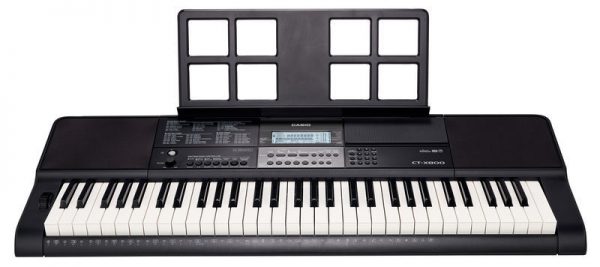

Description
- 61-note touch-sensitive portable keyboard
- 32-note polyphony
- 500 tones
- Digital effects
- 120 rhythms
- Advanced dual wave form HL sound chip processing
- 3-step lesson system with voice fingering guide
- USB for sound expansion and controller like capabilities
- Mic input and mic gain on panel for sing-along function
Technical Specifications:

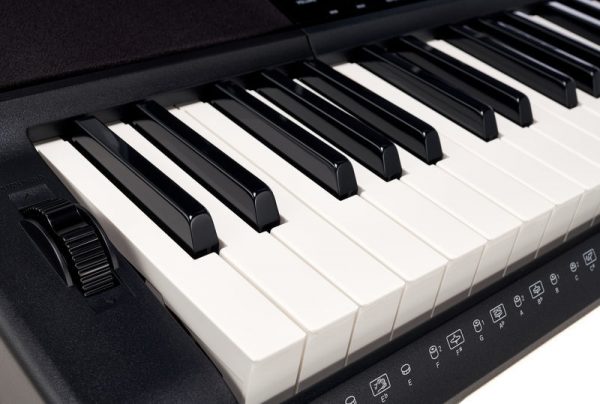

Keyboard:
- 61 keys
- Touch response
- 3 types, off
- Maximum Polyphony: 48 notes (24 for certain tones)
Tones:
- Sound Source: AiX
- Built-in tones: 600
- Functions: Layer, Split, Piano/Organ button
Digital effects:
- Reverb: 20 types, off
- Chorus: 10 types, tone
Metronome:
- Beats per measure: 0 to 9
- Tempo range: 20 to 255

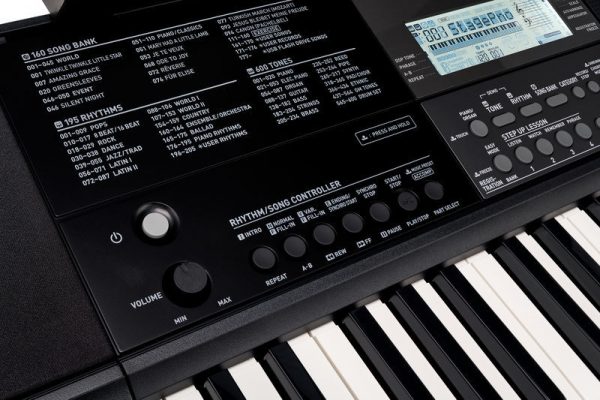

Song bank:
- Demo song: 1
- Built-in songs: 160
- User songs: 10 (maximum capacity per song: approximately 320 kilobytes)
- User-recorded songs: 6 (maximum capacity per song: approximately 320 kilobytes)
- Step up lesson:
- Lessons: 3 (Listen, watch, remember), Easy Mode
- Lesson part: L, R, LR
- Functions: Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation
Auto accompaniment :
- Built-in rhythms: 195
- User rhythms: 10 (maximum capacity per song: approximately 64 kilobytes)
- Music presets: 310
- One touch presets: 195
- Registration: 32 (4 setups x 8 banks)
- Controllers: Pitch bend wheel
- MIDI: 16-multi-timbre received, GM Level 1 standard
MIDI recorder:
- Real-time recording, playback
- Keyboard play: 5 songs, 6 tracks
- Playing along with built-in-songs: 1 song (L, R, LR)
- Memory capacity: approximately 40.000 notes (1 song)
Other functions:
- Transpose: ± 1 octave (-12 to 0 to + 12 semitones)
- Octave shift: Upper 1/ Upper 2/ Lower, ± 3 octaves
- Tuning: A4 = 415,5 to 465,9 Hz (initial default: 440,0 Hz)
- Preset scales: 17 preset scales
- Auto harmonize: 12 types
- Arpeggiator: 100 types

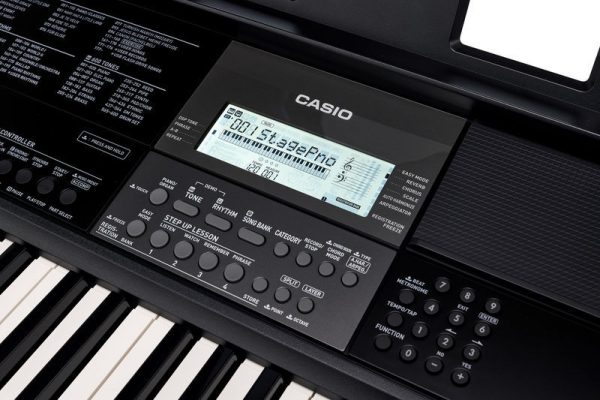

Musical information function:
- Tone, Rhythm, Song bank numbers and names, Staff Notation, Fingering, Pedal operation, Tempo, Measure and Beat-number, chord name etc.

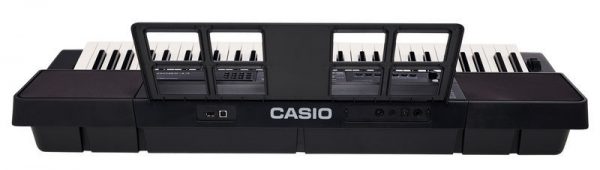

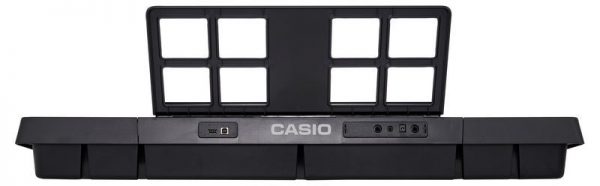

Inputs/Outputs:
- USB flash drive port: Type A
- USB port: Type B
- Pedal jack 1: Standard jack (sustain, sostenuto, soft, rhythm)
- Phones/Output jack: Stereo standard jack (Output impedance: 167 ?, output voltage: 4,5 V (RMS) MAX)
- Audio input jack: Stereo mini jack (Input impedance: 10 kΩ , input sensitivity: 200 mV)
Power supply:
- 2-way
- Power jack: DC 9,5 V
- Batteries: 6 x AA-size alkaline batteries
- Battery life: approximately 3 hours continuous operation on alkaline batteries
- AC adaptor: AD-E95100L
- Auto power off: approximately 30 minutes after last operation; can be disabled
- Speakers: 12 cm x 2 (output: 2,5 W + 2,5 W)
- Power consumption: 9,5 V – 7,5 W
- Dimensions: 94,8 x 35,0 x 10,9 cm
- Weight (without batteries): approximately 4,4 kg (without batteries)

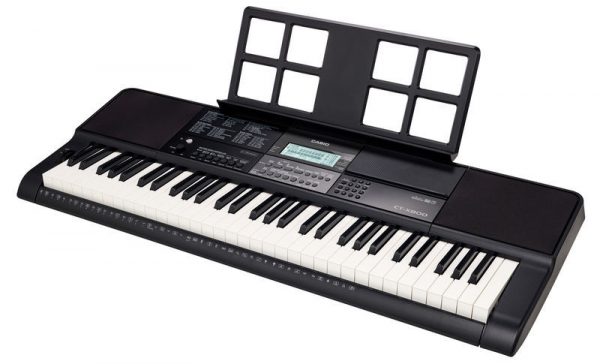

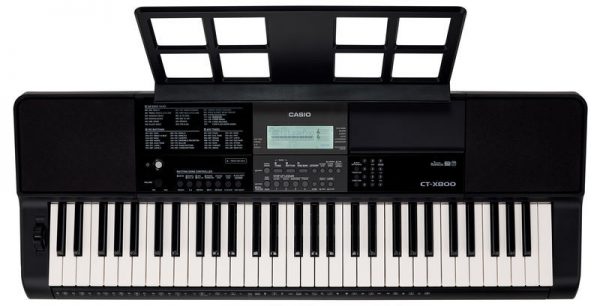

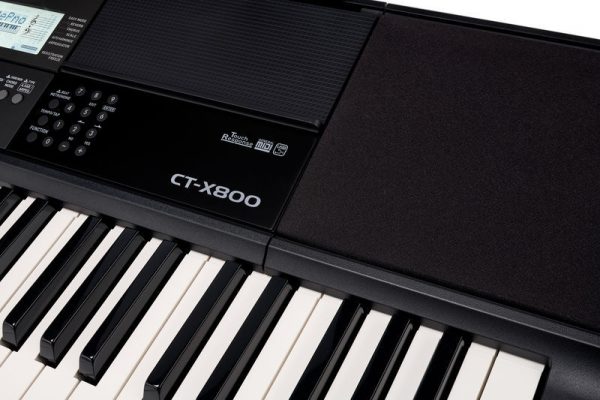

Get the Casio CTX-800 and start making music!
