Description

FEATURES

●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging tripod and stacking
●Good used for moving performance, small scale theater, stadium and odeums.

SPECIFICATIONS

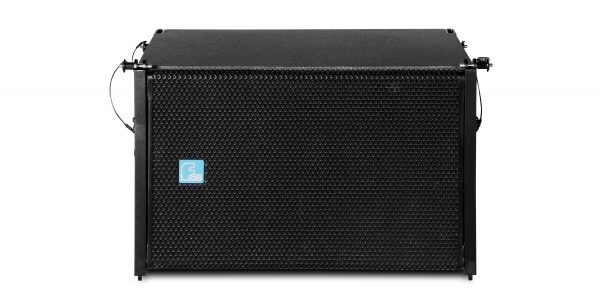

MODEL MLA112
FREQUENCY RESPONSE(-3dB) 50Hz-18kHz
FREQUENCY RESPONSE(-10dB) 45Hz-20kHz
DRIVERS 1×12″(300mm)/3″voice coil LF
2×1″(25mm)/1.7″voice coil HF
RATED POWER 400W RMS,1600W peak
SENSITIVITY 98dB  1watt/1meter
MAXIMUM SPL 122 dB continuous,128 dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) Horizontal covrage100°
Vertical coverageVaries,depending on
array length and configuration
CROSSOVER FREQUENCIES 2kHz passive
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 522mm×487mm×635mm
NET WEIGHT 21 kg/pc
GROSS WEIGHT 25 kg/pc
