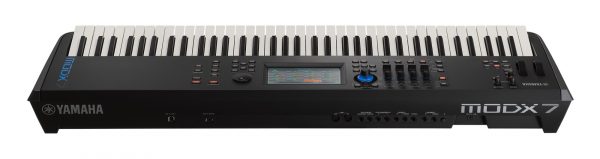

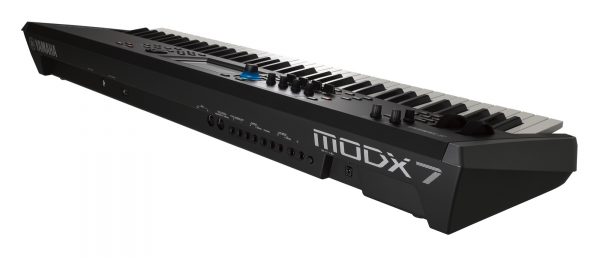

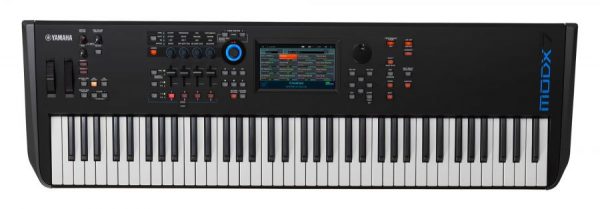

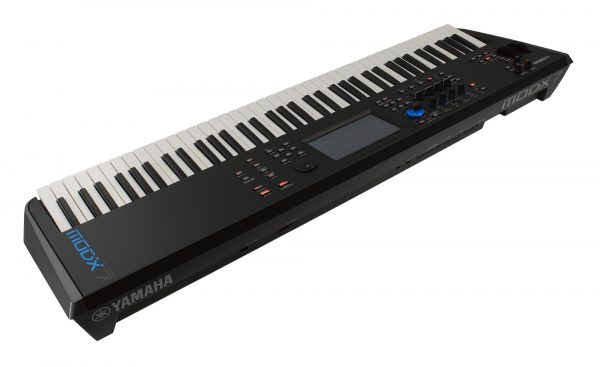

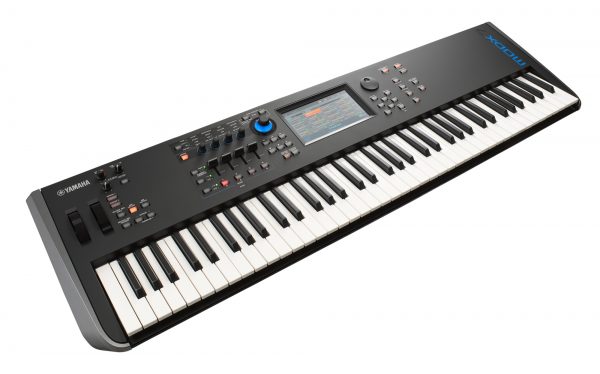

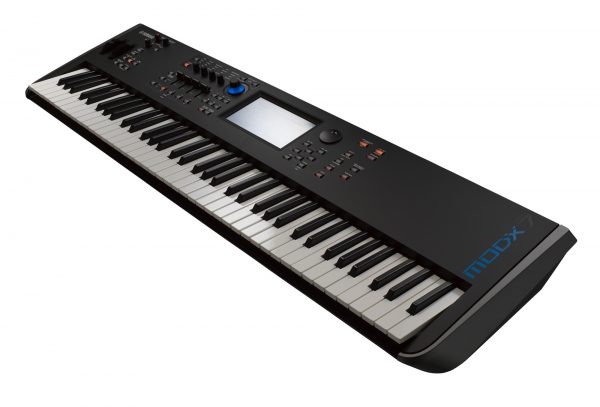

Yamaha MODX7 Synthesizer 76-Key Edition

Description

Inheriting technology and musicality from our flagship Montage Synthesizer, the MODX packs huge amounts of sonic power and playability into a lightweight chassis that’s perfect for the stage or home/project studio.

Featuring the world-class FM-X, AWM2 and Motion Control Synthesis engines, the MODX includes a high quality touchscreen making it quick and easy to create and find sounds.

Width

1,144mm (45-1/16″)

Height

134mm (5-1/4″)

Depth

331mm (13-1/16″)

Weight

7.4 kg (16 lbs 5 oz)

Number of Keys

76

Keyboard Action

Semi-weighted Keyboard

Touch Sensitive

Yes

Synthesis Technology

Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms

Maximum Polyphony

AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.)

Multi Timbral Capacity

16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part

Wave

Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB

Performance Settings

Approx. 2,000

Filters

18 types

Effects

Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

Hands-On Controls

Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial

Display

7″ TFT Color Wide VGA LCD touch screen

Connectivity

[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Power Consumption

16 W (when using PA-150B AC adaptor)

Accessories

AC adaptor (PA-150B), Owner’s Manual, Cubase AI Download Information

Live Sets

Preset: 256 and more, User: 2,048

Performance Recorder Tracks

16 Sequence tracks, Tempo track, Scene track

Recording type

Real time replace, Real time overdub, Real time punch in/out

Note Capacity

Approx. 130,000 notes

Note Resolution

480 ppq (parts per quarter note)

Tempo (BPM)

5 – 300

Songs

128 songs

Arpeggio

Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types

Sequence formats

MODX original format, SMF formats 0, 1
