Product Description
High-quality balanced coaxial microphone cable with strong and flexible winding Characteristics: Wire: copper 26 AWG = 18 × 0.10 mm (0.14 mm²) Insulation: diameter 1.25 mm Sheath: flexible polyvinyl chloride with a diameter of 6.00 mm Resistance: 125 Ohm / Km @ 20 ° C Capacitance: 45 pF / mt @ 1 KHz, 96 pF / mt @ 1 KHz Transmission rate: 66% Operating temperature range: -20 ° C / + 70 ° C Operating voltage: 30 V Minimum radius: 20x – cable section Weight: 40 kg / km Color: black
What’s in the box

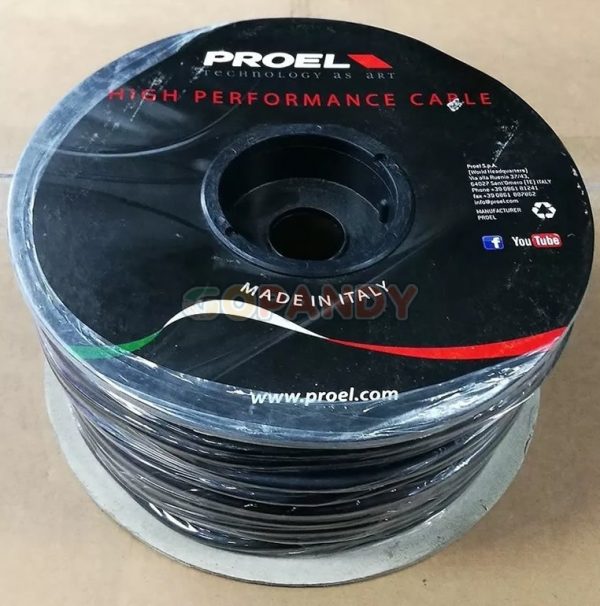

- PROEL HPC201 100m Microphone cable Roll
Features
- Application fields: Mixer connections / Microphone connections
- Conductors: Bare copper 26 AWG = 18 x 0.10 mm (0.14 mm2)
- Insulation: PE Ø 1.25 mm
- Shield: Aluminium/Polyester 100%
- Jacket: Flexible PVC 60 shore Ø 6.00 mm
- Drain wire: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm2)
- Color: Black
- Electrical resistance: 125 Ohm/Km (conductor) @ 20°C
- Electrical capacitance:
- 45 pF/m (conductor/conductor) @ 1 KHz
- 96 pF/m (conductor/shield) @ 1 KHz
- Velocity of propagation: 66 %
- Operating temperature: -20°C / +70°C
- Working tension:
- < 50 V AC
- < 75 V DC
- Weight: 40 Kg/Km
- Minumum bending radius: 20 x cable section radius
- Packaging:
- 100 m carton reel
